Zebra LS2208 — Best-Selling 1D Laser Barcode Scanner, USB Kit with Stand 100 Scans per SecondRange up to 43 cmUSB Kit — Cable + Stand5-Year Warranty The Zebra Symbol LS2208 (part number LS2208-SR20007R-UR) is Zebra’s best-selling corded 1D laser barcode scanner, built for retail point-of-sale, healthcare and light warehouse use where fast, dependable scanning matters. This USB kit includes the twilight-black LS2208 scanner, a 2.1 m USB cable (CBA-U01-S07ZAR) and the hands-free Intellistand (20-

Χαρακτηριστικά

Λεπτομέρειες

Zebra LS2208 — Best-Selling 1D Laser Barcode Scanner, USB Kit with Stand

100 Scans per SecondRange up to 43 cmUSB Kit — Cable + Stand5-Year Warranty

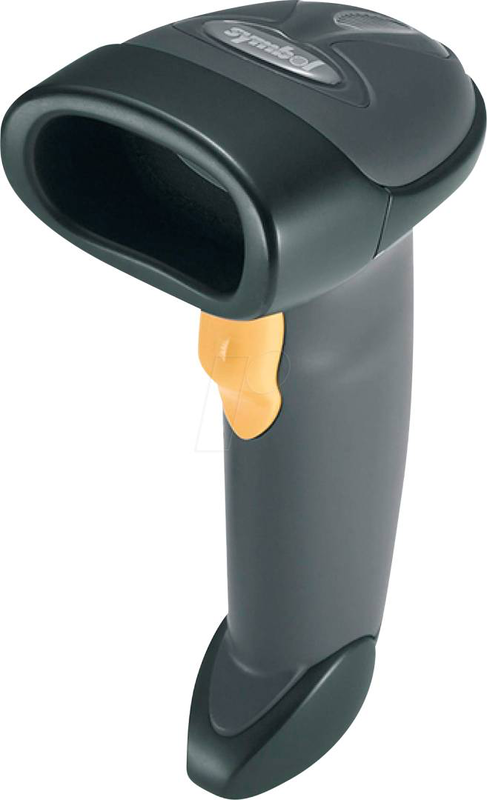

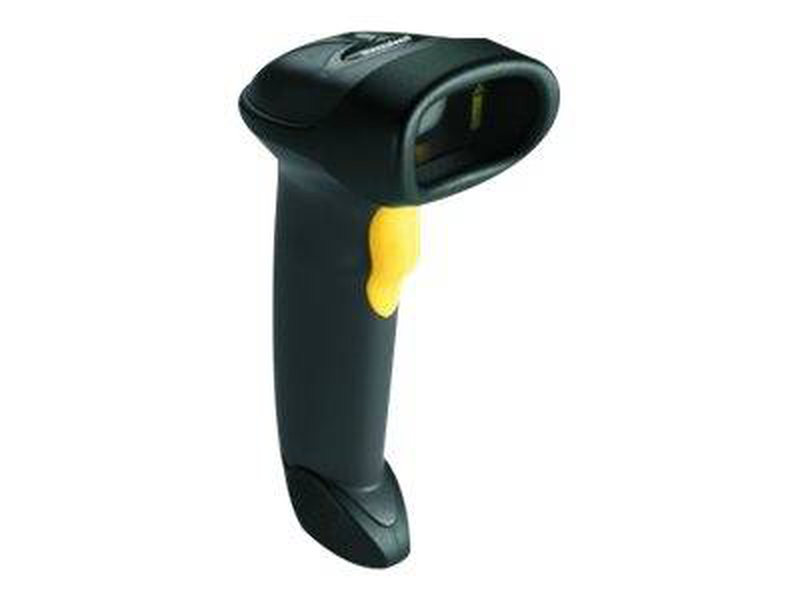

The Zebra Symbol LS2208 (part number LS2208-SR20007R-UR) is Zebra’s best-selling corded 1D laser barcode scanner, built for retail point-of-sale, healthcare and light warehouse use where fast, dependable scanning matters. This USB kit includes the twilight-black LS2208 scanner, a 2.1 m USB cable (CBA-U01-S07ZAR) and the hands-free Intellistand (20-61019-02R). Its aggressive 650 nm laser captures 100 scans per second with a wide working range — everyday 13 mil UPC codes from contact up to 43 cm away — and it is backed by a 5-year warranty. Typically in stock with fast delivery across Cyprus.

Compatibility & Usage Note

The LS2208 reads printed 1D barcodes only — as a laser scanner it cannot read QR/2D codes or barcodes displayed on phone screens. The scanner body supports USB, RS-232, Keyboard Wedge and IBM 468x/9x; this kit ships with the USB cable, other interface cables are sold separately.

Best For

✓ Retail point-of-sale & supermarket checkout

✓ School book & library circulation desks

✓ Healthcare — patient and specimen labels

✓ Light warehouse receiving and inventory

✓ Hands-free presentation scanning via Intellistand

✓ High-frequency all-day scanning environments

Key Features

Wide 43 cm Working Range

Contact to 17 in./43 cm on 100% UPC/EAN symbols and up to 76 cm on large 40 mil codes — workers scan items without stretching or repositioning, keeping queues moving.

Complete USB Kit with Intellistand

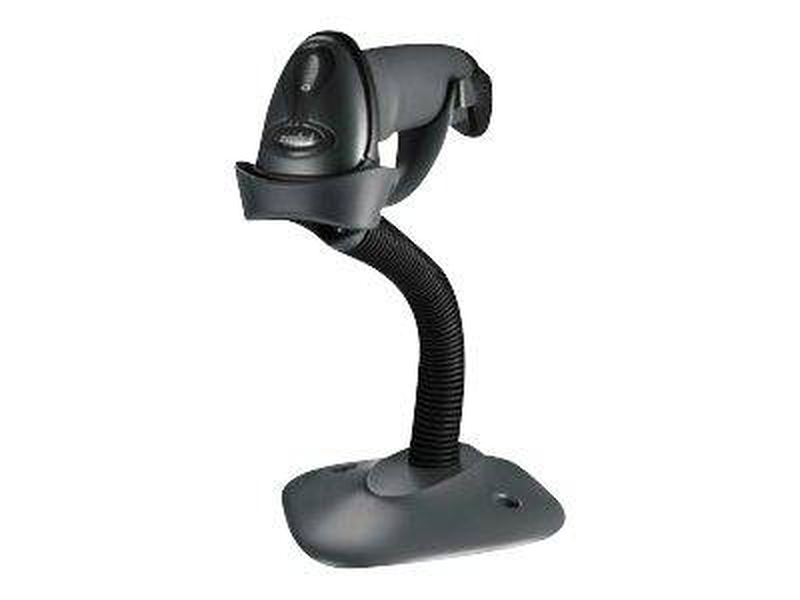

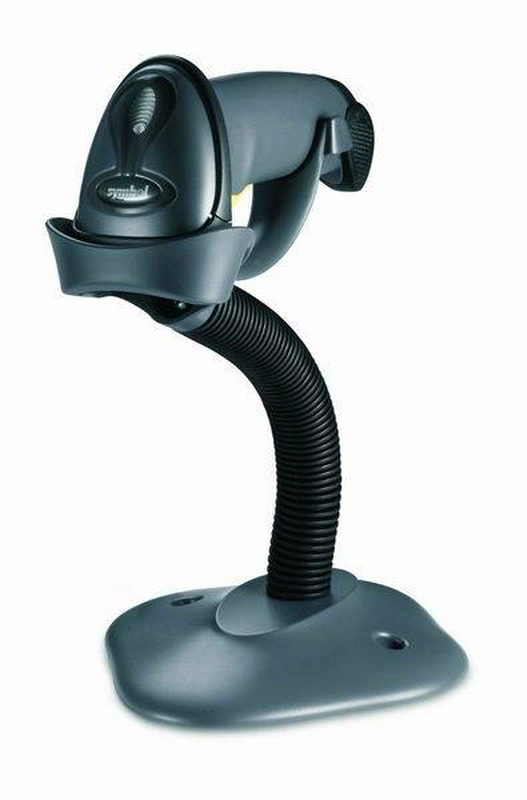

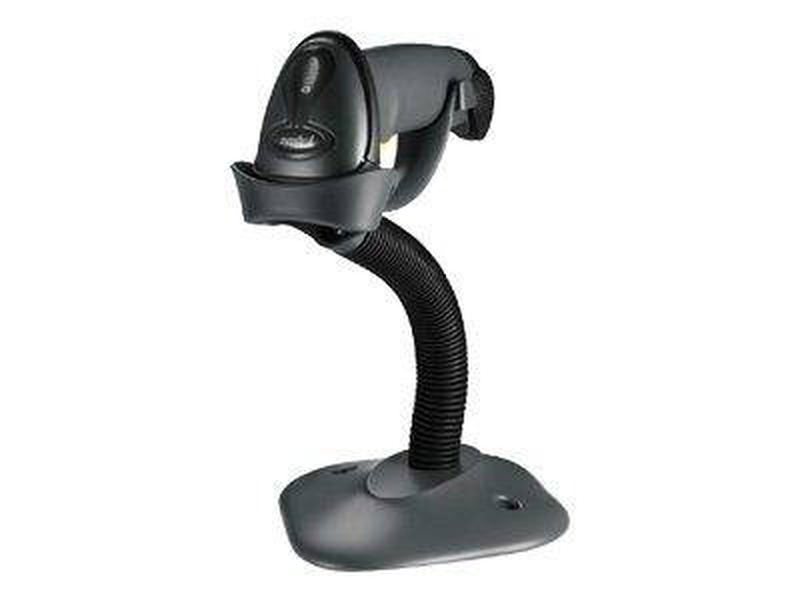

Scanner, 2.1 m USB cable and hands-free Intellistand included. Drop the scanner in the stand and it switches to presentation mode automatically.

Legendary Durability

Patented single-board construction, frictionless liquid-polymer scan element and scratch-resistant tempered-glass window; tested to multiple 1.5 m / 5 ft drops to concrete.

Advanced Data Formatting

ADF modifies scanned data before it reaches the host, so barcodes drop into your POS in exactly the format you need — no costly host software changes.

Technical Specifications

Identification
Part Number	LS2208-SR20007R-UR
MPN	LS2208-SR20007R-UR
Series	Zebra (Symbol) LS2208, standard range
Kit Contents
Scanner	LS2208-SR20007R (twilight black)
Cable	CBA-U01-S07ZAR — 2.1 m straight USB
Stand	Intellistand 20-61019-02R — hands-free presentation scanning
Reading Performance
Scanner Type	Bi-directional 1D laser
Light Source	650 nm visible laser diode — CDRH Class II / IEC Class 2
Scan Rate	100 scans per second (50 Hz scan element)
Min Print Contrast	20% reflective difference
Read Angles	Roll ±30° + Pitch ±65° + Skew ±60°
Typical Working Range
Code 39 — 5 mil	6.0 to 15.25 cm
Code 39 — 7.5 mil	3.8 to 25.4 cm
Code 39 — 10 mil	2.5 to 36.2 cm
UPC/EAN 100% — 13 mil	0 to 43.0 cm
Code 39 — 20 mil	0 to 58.5 cm
Code 39 — 40 mil	0 to 76.0 cm
Decoding Capability
1D Symbologies	UPC/EAN (+Supplementals), UPC/EAN 128, Code 39 (Full ASCII, TriOptic), Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar variants, Chinese 2 of 5
Interface
This Kit	USB (plug-and-play keyboard emulation)
Scanner Supports	USB + RS-232 + Keyboard Wedge + IBM 468x/9x — universal cable compatibility
Electrical
Voltage & Current	5 VDC ±10% @ 130 mA typical (175 mA max)
Power Source	Host (USB) powered — no power supply needed
Environmental
Drop Resistance	Functions normally after repeated 1.5 m / 5 ft drops to concrete
Sealing	IP30 — protected against solid objects, no water protection
ESD Protection	15 kV air + 8 kV contact discharge
Operating Temperature	0 to 50 °C
Storage Temperature	-40 to 70 °C
Humidity	5 – 95% non-condensing
Ambient Light	Tolerant of indoor lighting and direct sunlight (86,111 lux)
Physical
Dimensions	15.2 x 6.3 x 8.4 cm (H x W x D)
Weight	150 g
Colour	Twilight Black
Warranty
Warranty	5-year factory warranty

Frequently Asked Questions

Does the Zebra LS2208 work with my POS software?

Yes. Connected via the included USB cable it appears as a keyboard — every scanned barcode types directly into any Windows, macOS or Linux POS, ERP or spreadsheet field with no drivers. Advanced Data Formatting can reshape the data before it reaches your software.

Can the LS2208 read barcodes from a phone screen?

No. The LS2208 uses a laser, which cannot read codes off illuminated displays or any 2D/QR codes. For mobile loyalty cards or e-coupons choose the Zebra LI2208 linear imager or DS2208 2D imager.

What is the difference between the LS2208 and the LS1203?

Both scan 100 times per second, but the LS2208 more than doubles the working range (43 cm vs 21.5 cm on 13 mil UPC), adds IBM 468x/9x host support, Advanced Data Formatting and a 5-year warranty versus 3 years on the LS1203.

What do I need to know before buying the LS2208-SR20007R-UR?

This kit is complete: scanner, 2.1 m USB cable and Intellistand. It is USB bus-powered — one cable for data and power. In the Intellistand it auto-switches to hands-free presentation mode; out of the stand it scans on trigger.

Singular Expert Insight

The LS2208 has earned its place as Zebra’s best-selling scanner: it is fast, nearly indestructible at the counter and covered for 5 years. Choose it over the cheaper LS1203 when you need the longer working range or all-day heavy use. If customers present barcodes on phones, the same-ergonomics LI2208 linear imager reads screens and reaches 76 cm; and if QR codes are anywhere in your future, the DS2208 2D imager is the safer long-term buy. For printed-label scanning at the till, the LS2208 kit with stand remains the benchmark.

Buyer’s Guide

Buy it if

You scan printed 1D labels all day and want proven reliability + you need range up to 43 cm for bulky items + the included Intellistand covers presentation scanning + a 5-year warranty matters to you.

Skip it if

You need to scan barcodes from phone screens or QR/2D codes + you want the lightest, cheapest option for occasional close-range scans (LS1203) + you need IP-rated sealing against dust and liquids.

Also consider

Zebra LI2208 — same ergonomics, linear imager that reads phone screens, 76 cm range. Zebra DS2208 — adds full QR/2D support. Zebra LS1203 — smaller budget kit for light use.
