Manhattan contact ccd barcode scanner 178488 1d handheld 60mm scan width 100 scans/sec USB keyboard wedge black

Name: Manhattan contact ccd barcode scanner 178488 1d handheld 60mm scan width 100 scans/sec USB keyboard wedge black
Brand: MANHATTAN
SKU: 69317830-1290-4ecc-943a-d6fd7ac024ce
Price: 57.51 EUR
Availability: InStock

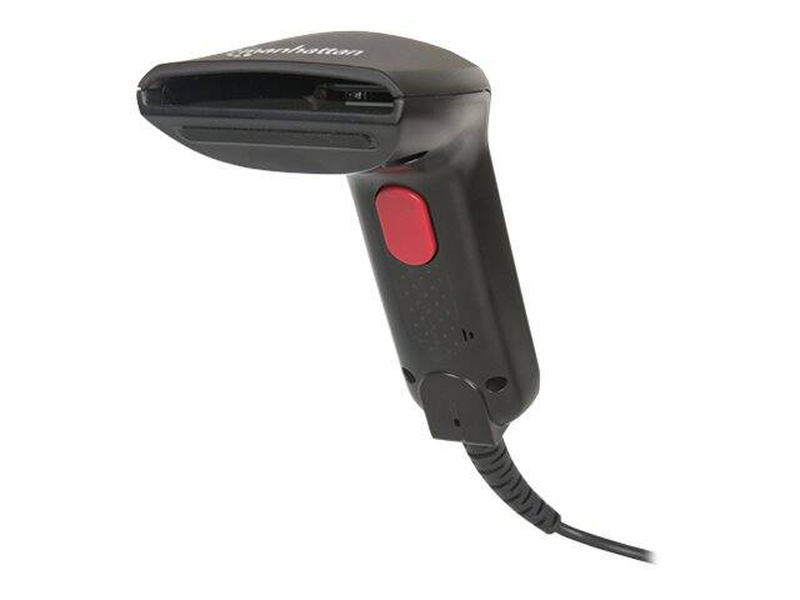

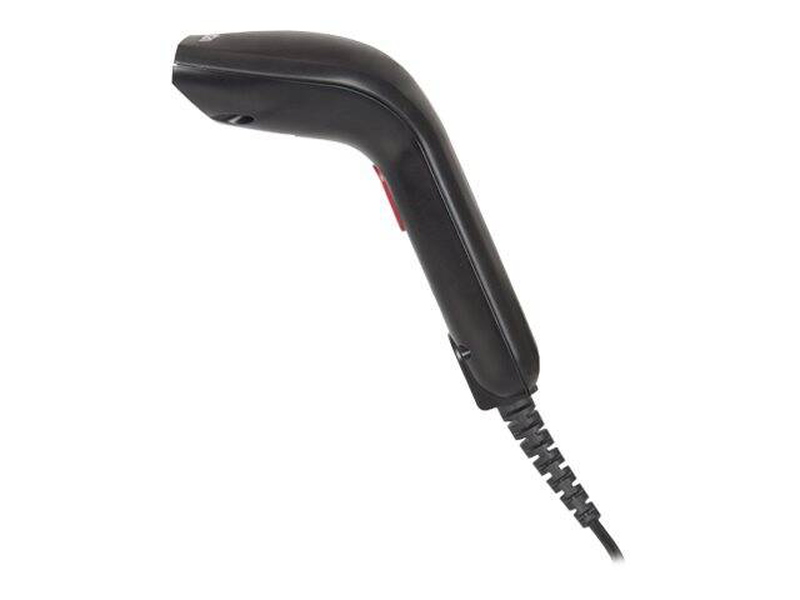

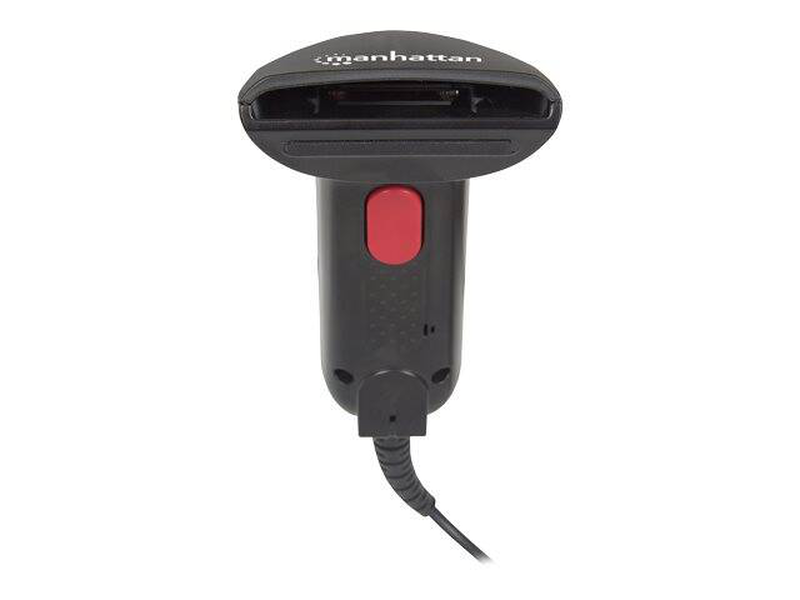

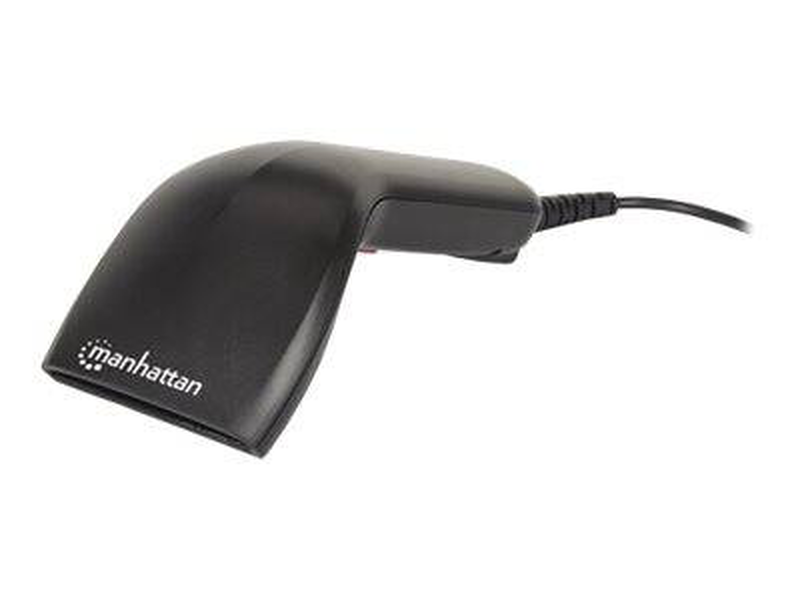

Product image: Manhattan contact ccd barcode scanner 178488 1d handheld 60mm scan width 100 scans/sec USB keyboard wedge black-null

MANHATTAN

Manhattan contact ccd barcode scanner 178488 1d handheld 60mm scan width 100 scans/sec USB keyboard wedge black

€ 57.51

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Επιλογή Χρώμα: Black

Σε απόθεμα

Ποσότητα

–+

Από: Singular Computers Systems LTD

Περισσότερα από αυτό το κατάστημα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 31 Ιουλ - 03 Αυγ

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 03 Αυγ - 05 Αυγ

€ 3.49

Περιγραφή

Αριθμός προϊόντος: 69317830-1290-4ecc-943a-d6fd7ac024ce

Manhattan Contact CCD Barcode Scanner — Simple, Reliable 1D Scanning Contact CCD Engine100 Scans/secUSB Plug & Play3-Year Warranty The Manhattan Contact CCD Barcode Scanner (part number 178488, EAN 0766623178488) is an entry-level handheld 1D scanner that reads barcodes up to 60 mm wide at up to 100 scans per second, made for shops, offices and small warehouses that want dependable scanning without a big budget. Its CCD scan engine has no moving parts — unlike a laser scanner there is no oscill

Χαρακτηριστικά

Λεπτομέρειες

Manhattan Contact CCD Barcode Scanner — Simple, Reliable 1D Scanning

Contact CCD Engine100 Scans/secUSB Plug & Play3-Year Warranty

The Manhattan Contact CCD Barcode Scanner (part number 178488, EAN 0766623178488) is an entry-level handheld 1D scanner that reads barcodes up to 60 mm wide at up to 100 scans per second, made for shops, offices and small warehouses that want dependable scanning without a big budget. Its CCD scan engine has no moving parts — unlike a laser scanner there is no oscillating mirror to wear out — and the built-in keyboard wedge decoder types every scanned code straight into your open application, exactly as if entered on a keyboard. Plug the fixed 1.52 m USB cable into any PC or POS and start scanning; no drivers, software or external power needed. Typically in stock with fast delivery across Cyprus.

Compatibility Note

This is a contact-type scanner: it reads from touching distance up to about 6 cm away, so the barcode must be brought to the scanner (or the scanner to the item). It reads printed 1D barcodes only — QR/2D codes are not supported. Codes wider than the 60 mm scan window cannot be captured. For scanning at arm’s length choose a laser scanner such as the Honeywell Voyager 1250g.

Best For

✓ Budget retail POS and kiosks

✓ Office document and file tracking

✓ Libraries, ticketing and membership cards

✓ Small-warehouse receiving desks

✓ Inventory counts of hand-held items

✓ First scanner for a new small business

Key Features

CCD Engine, No Moving Parts

The charge-coupled device sensor reads codes with a 632 nm red LED and has no oscillating mirror or motor inside, so there is simply less to wear out over years of daily scanning.

Keyboard Wedge Simplicity

Scanned data appears in whatever application is active — POS software, Excel, a web form — as if typed on the keyboard. No software installation or training required.

Fast, Wide Scan Field

The 60 mm scan window captures codes at up to 100 scans per second and resolves bars down to 5 mil, handling poorly printed labels reliably at contact distance.

Switchable Interface

The decoder supports USB (HID keyboard or virtual COM port), RS232 and keyboard wedge modes; this model ships with a fixed 1.52 m USB cable for plug-and-play use on any PC.

Technical Specifications

Identification
Part Number	178488
EAN / GTIN	0766623178488
MPN	178488
Brand	Manhattan (IC Intracom)
Scan Performance
Scan Engine	Contact CCD — solid-state sensor, no moving parts
Light Source	632 nm red LED
Scan Width	60 mm (2.4 in)
Read Range	Contact to 6 cm @ 20 mil, PCS 90% — print contrast signal, a measure of label quality
Resolution	0.127 mm (5 mil) — the narrowest bar width it can read
Scan Rate	100 scans/second ±10%
Ambient Light	Up to 5,000 lux
Symbologies	UPC/EAN/JAN, Code 39 (+Full ASCII), Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Codabar/NW7, MSI/Plessey, China Postage, GS1 DataBar
Connectivity
Interface	USB (HID keyboard or virtual COM port); decoder also supports RS232 and Keyboard Wedge modes
Cable	Fixed 1.52 m USB cable
Data Entry	Built-in keyboard wedge decoder — scans appear as typed keyboard input
Physical
Dimensions	180 x 80 x 63.5 mm
Weight	120 g (without cable)
Housing	ABS plastic, black
Electrical
Voltage	DC 5 V ±5%, USB bus-powered
Power Consumption	80 mA
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	20% to 95% RH, non-condensing
Certifications	FCC, CE, RoHS
In the Box & Warranty
Included	Contact CCD handheld barcode scanner (fixed USB cable), user manual
Warranty	3-year warranty

Frequently Asked Questions

Does the Manhattan 178488 need drivers or software?

No. It works as a USB HID keyboard: plug the cable into a free USB port and every scan is typed into the active application — POS software, ERP, Excel or a browser form. A virtual COM port driver is available from Manhattan if your software expects serial data instead.

How far away can it read a barcode?

This is a contact scanner: it reads from touching the label up to roughly 6 cm away. That is by design for its price class — if you need to scan items at arm’s length or in a trolley, choose a laser scanner such as the Honeywell Voyager 1250g instead.

Can it read QR codes or barcodes on phone screens?

No. The CCD engine reads printed linear (1D) barcodes such as EAN, UPC, Code 128 and Code 39. QR and other 2D codes require a 2D area imager.

What should I know before buying the Manhattan 178488?

It is a value scanner for close-range scanning of printed 1D codes up to 60 mm wide, with a fixed 1.52 m USB cable and a 3-year warranty. It is USB bus-powered (just 80 mA), so no power adapter is needed. If your barcodes are wider than 60 mm or you scan from a distance, step up to a laser model.

Singular Expert Insight

The 178488 is the sensible pick when every scan happens at the counter with the item in hand — think ticket desks, libraries and small shops. Its CCD engine is actually more robust than an entry-level laser because nothing moves inside, and the 3-year warranty is solid for the class. Where it gives way to the Honeywell Voyager 1250g is reach: the Voyager reads a 13 mil code from 44 cm, this one from 6 cm. Match the tool to the counter: contact CCD for hand-fed scanning at the till, laser for trolleys and shelves, and a 2D imager if customers show barcodes on their phones.

Buyer’s Guide

Buy it if

You scan printed 1D barcodes at the counter with items in hand and want a durable, no-software USB scanner with a 3-year warranty at entry-level cost.

Skip it if

You need to scan from a distance (contact to 6 cm only), read QR codes or phone screens, or your barcodes exceed the 60 mm scan width.

Also consider

Honeywell Voyager 1250g for extended-range laser scanning up to 44.6 cm, or a 2D imager like the Zebra DS2208 for QR codes and digital coupons on screens.
