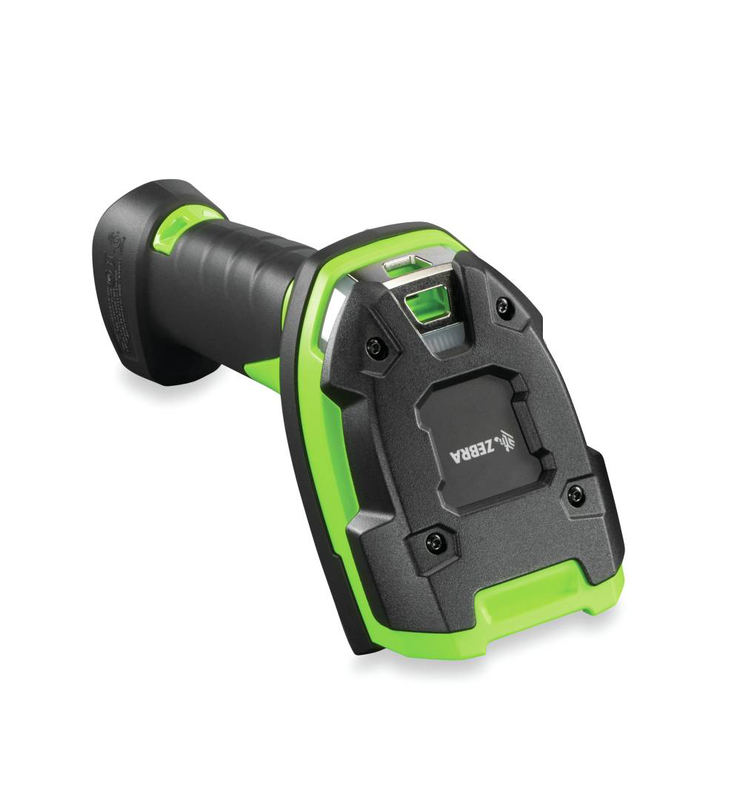

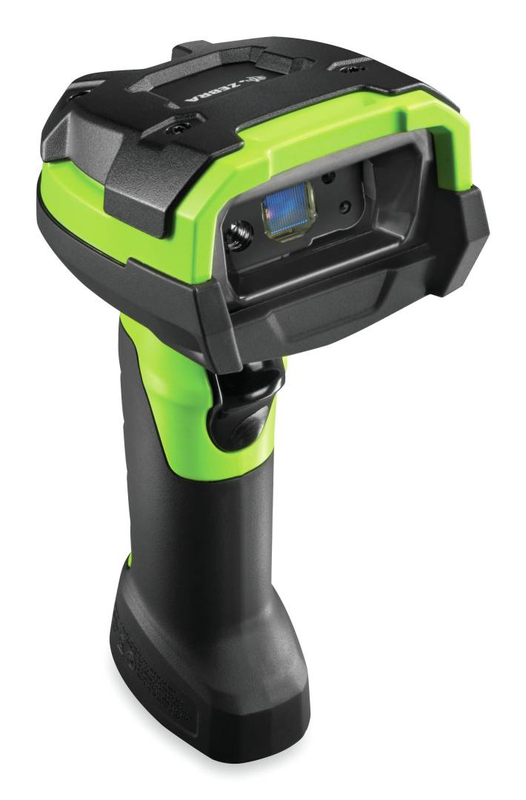

Zebra ds3608-sr ultra-rugged 1d/2d imager USB kit | ip67 | 2.4m drop | 1.5m range | industrial green

Name: Zebra ds3608-sr ultra-rugged 1d/2d imager USB kit | ip67 | 2.4m drop | 1.5m range | industrial green
Brand: ZEBRA TECHNOLOGIES
SKU: 05c050d9-df9c-4ce0-b946-00809e1c2013
Price: 485.07 EUR
Availability: InStock

€ 485.07

Πλήρωσε σε 3, 6 ή 9 άτοκες δόσεις με 0 χρεώσεις υπηρεσίας χρησιμοποιώντας το

Ποσότητα

–+

Από Singular Computers Systems LTD

Σε απόθεμα

Σημεία / Θυρίδες παραλαβής

Εκτ. παράδοση: 11 Ιουν - 12 Ιουν

Δωρεάν

Παράδοση στην πόρτα σου

Δωρεάν αποστολή για παραγγελίες άνω των € 85.00 από το Singular Computers Systems LTD

Εκτ. παράδοση: 12 Ιουν - 16 Ιουν

Δωρεάν

Περιγραφή

Αριθμός προϊόντος: 05c050d9-df9c-4ce0-b946-00809e1c2013

Overview The Zebra DS3608-SR is the 1D/2D flagship of the 3600 Ultra-Rugged Series — the most indestructible corded scanner Zebra makes, now with a full area imager that captures virtually any barcode from near contact to 1.5 m away. It reads 1D and 2D barcodes printed on labels or displayed on screens, even under heavy shrink-wrap, damaged, dirty, or poorly printed — as fast as a worker can pull the trigger. Multi-code capture processes up to 20 barcodes simultaneously with one trigger pull, ap

Χαρακτηριστικά

Λεπτομέρειες

Overview

The Zebra DS3608-SR is the 1D/2D flagship of the 3600 Ultra-Rugged Series — the most indestructible corded scanner Zebra makes, now with a full area imager that captures virtually any barcode from near contact to 1.5 m away. It reads 1D and 2D barcodes printed on labels or displayed on screens, even under heavy shrink-wrap, damaged, dirty, or poorly printed — as fast as a worker can pull the trigger.

Multi-code capture processes up to 20 barcodes simultaneously with one trigger pull, applying the unique data format required for each code in the correct order. The DS3608-SR3U4600VZW is the USB kit, including the scanner and CBA-U46-S07ZAR 7 ft shielded high-current USB cable in Industrial Green with vibration motor.

Note: The EAN provided by the distributor for this SKU is 4016139084619.

Key Specifications

Scanning Technology	1D/2D Area Imager \| Standard Range \| 1280 × 960 px sensor
Scanning Range	Near contact to ~1.5 m (5 ft) for standard barcodes
1D Symbologies	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32
2D Symbologies	PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR, Aztec, MaxiCode, Han Xin, Postal Codes, DotCode, Digimarc, Composite Codes, TLC-39, IUID
Multi-Code Capture	Up to 20 barcodes simultaneously — one trigger pull for all barcodes on a label
Host Interface	USB (kit includes CBA-U46-S07ZAR 7 ft shielded high-current cable) \| RS-232, KBW also supported
Sealing	IP65 + IP67 dual-rated — fully dust-tight; immersion up to 1 m for 30 minutes
Drop Specification	Multiple drops from 10 ft (3.0 m) to concrete
Tumble Specification	5,000 tumbles
Operating Temperature	-30°C to +50°C — freezer and outdoor operation
User Indicators	Vibration motor + red/green LEDs + beeper — mix-and-match feedback modes
Management	Zebra DataCapture DNA — 123Scan, ScanSpeed Analytics, Remote Diagnostics, SMS
Dimensions	185.4 × 76.2 × 132.1 mm (7.3" × 3.0" × 5.2")
Color	Industrial Green
Warranty	3-year manufacturer warranty
In the Box	DS3608-SR00003VZWW scanner + CBA-U46-S07ZAR shielded USB cable (7 ft)
Part Number	DS3608-SR3U4600VZW
EAN	4016139084619

DS3608-SR vs LI3608: Which to Choose?

	LI3608 (1D only)	DS3608-SR (This — 1D/2D)
Reads 1D barcodes	✓	✓
Reads QR / DataMatrix / 2D	✗	✓
IP67 / 10 ft drop / -30°C	✓	✓
Multi-code capture	✗	✓ (up to 20 barcodes)

Use Cases

Warehouse & Distribution: First-pass capture of any barcode — 1D or 2D — on labels or screens at distances up to 1.5 m. Multi-code capture eliminates the need to scan individual labels on multi-barcode shipping cartons.

Manufacturing: Reads QR codes and DataMatrix on component labels, assembly instructions, and work orders alongside standard 1D inventory barcodes — one scanner for all barcode types on the production line.

Cold Storage: -30°C operation keeps the scanner functional in deep-freeze environments where most industrial scanners fail or require pre-warming.

Outdoor / Receiving Dock: IP67 withstands rain, hosing, and condensation. The 10 ft drop spec survives concrete dock floors. Works in direct sunlight.

Frequently Asked Questions

What is the difference between the DS3608-SR and DS3608-HD?

The SR (Standard Range) variant reads standard 1D and 2D barcodes at near contact to 1.5 m — ideal for warehouse, manufacturing, and logistics. The HD (High Density) variant is optimised for tiny barcodes down to 3 mil at close range — for electronics manufacturing and medical device production. If you need to read standard barcodes at a distance, choose SR. If you need to read miniature codes up close, choose HD.

What cable is included in the DS3608-SR3U4600VZW kit?

The kit includes the CBA-U46-S07ZAR — a 7 ft (2.1 m) shielded USB Type A straight cable with BC 1.2 high-current capability. This cable is rated to -30°C for cold storage environments, matching the scanner's operating temperature range.

How does multi-code capture work?

With one press of the trigger, the DS3608-SR captures all barcodes (or specific barcodes) on a label containing multiple codes — for example, a GS1-128 shipping label with item number, lot number, and expiry date in separate barcodes. The scanner applies the required data format to each code and transmits them in the correct order to your backend system, eliminating multiple trigger presses and data entry errors.

Can the DS3608-SR read barcodes on mobile phone screens?

Yes. The 2D area imager reads electronic barcodes displayed on smartphone and tablet screens — useful for digital coupons, loyalty codes, or mobile work orders in hybrid warehouse/retail environments.

BUYER'S GUIDE

Best forIndustrial warehouses, manufacturing plants, cold storage, and outdoor receiving operations that need a corded scanner capable of reading any barcode type — 1D, 2D, QR, DataMatrix — with the same ultra-rugged survivability as the LI3608 but without the 1D-only limitation.

Standout advantageIP65+IP67 dual rating + 10 ft drop + -30°C + multi-code capture (20 barcodes) + 1.5 m range in a single corded scanner. This is the industrial scanning benchmark that all other corded industrial scanners are measured against.

Know before you buyIf you only need 1D and want a lower price point, the LI3608 is the same chassis at lower cost. If you need ultra-long range (over 5 ft), consider the DS3608-ER extended range variant. For cordless operation, the DS3678-SR is the equivalent Bluetooth model.
