Smart Projection

Stunning Visuals

Fully Sealed Optical Engine

Durable with Exceptional Image Quality
The fully sealed optical engine uses a high-definition lens with excellent light transmission to project sharper images with high color accuracy—reproducing the artistic beauty of cinema as intended.

• Dustproof and Sealed
  The sealed design effectively blocks dust from entering the optical system, extending the projector’s lifespan.

Efficient Heat Dissipation

Equipped with a built-in low-noise dual-loop cooling system, it ensures quiet, efficient heat dissipation for an immersive viewing experience.

200 ISO Lumens

Accurate Brightness Performance
Certified by international standard SGS, it reaches up to 200 ISO Lumens, ensuring accurate brightness and more visible image details.

1080p Native Resolution

Sharper for a Better Experience
Supports 1080p Full HD resolution and 4K video playback, delivering crisp, clear visuals.

Ultra-Wide 120-Inch Display

Immersive Viewing on a Large Screen
With a 1.2:1 throw ratio, you can project a large screen from 40” to 120” anywhere, anytime.

Smart Environment Adaptation

Omnidirectional Auto Keystone Correction

Get a Perfect Rectangle, Instantly
Equipped with an AI-powered algorithm that automatically corrects the image based on the projector’s position—front, side, or ceiling mounted—eliminating the need for repeated manual adjustments.

Note: Side or tilted projection should not exceed 15°.

Auto Focus

Fast, Clear Images Instantly
The built-in zoom motor enables quick focus even after repositioning the projector, ensuring crisp visuals at all times.

Obstacle Avoidance

Keeps the Full Image in View
Using a high-precision camera and AI algorithm, it detects and avoids obstacles like wall switches or photo frames, adjusting the projection area to maintain a complete image.

Note: Due to varying environments, obstacle avoidance may not detect all obstructions.

Auto Screen Alignment

Accurate Framing in Seconds
AI-based screen alignment automatically detects screen edges to project accurately, eliminating the need for manual adjustments.

Tip: For better accuracy, use a screen with a black border. Some screen areas may remain uncovered for aspect ratio consistency.

Entertainment You Love – Powered by Google

Google TV™

Access over 400,000+ movies and shows across 10,000+ apps, all in one place.

Internet connection and Google account required. Some content, apps, or features may not be available in all regions or may require additional fees.

Hands-Free Help with Google Assistant

Ask Google to find movies, stream apps, play music, or control the projector—all with your voice. You can also control smart home devices, get answers, and more.

Example: “Show me action shows”

Availability varies by region and language.

Built-in Casting

Easily cast movies, shows, photos, and more from your phone or tablet.

Casting compatible with select apps and devices.

Even More Features

High-Performance Processor

Equipped with the MT9630 high-performance chip and 2GB RAM + 16GB storage, it ensures a smooth and powerful performance for all your entertainment needs.

Cinematic Audio Experience

Built-in dual full-range speakers (3W × 2), professionally tuned and certified with Dolby Audio™, deliver immersive sound.

Bluetooth Remote Control

Control your projector effortlessly in 360° with a Bluetooth remote featuring shortcut buttons for quick content access.

Compact & Portable

Stylish and minimal, it blends beautifully into any home decor.

Specifications

Basic Info

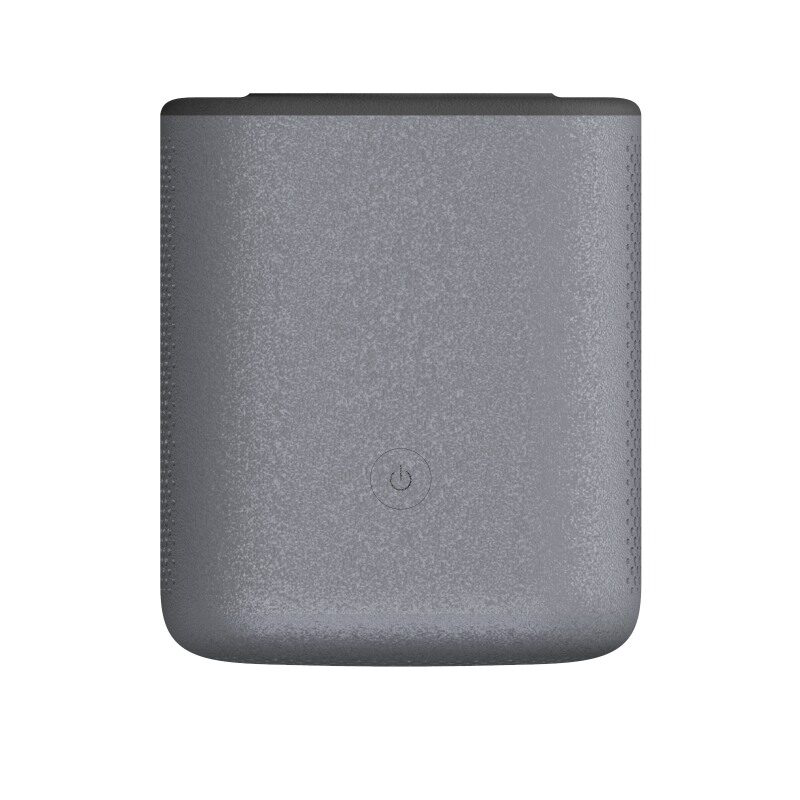

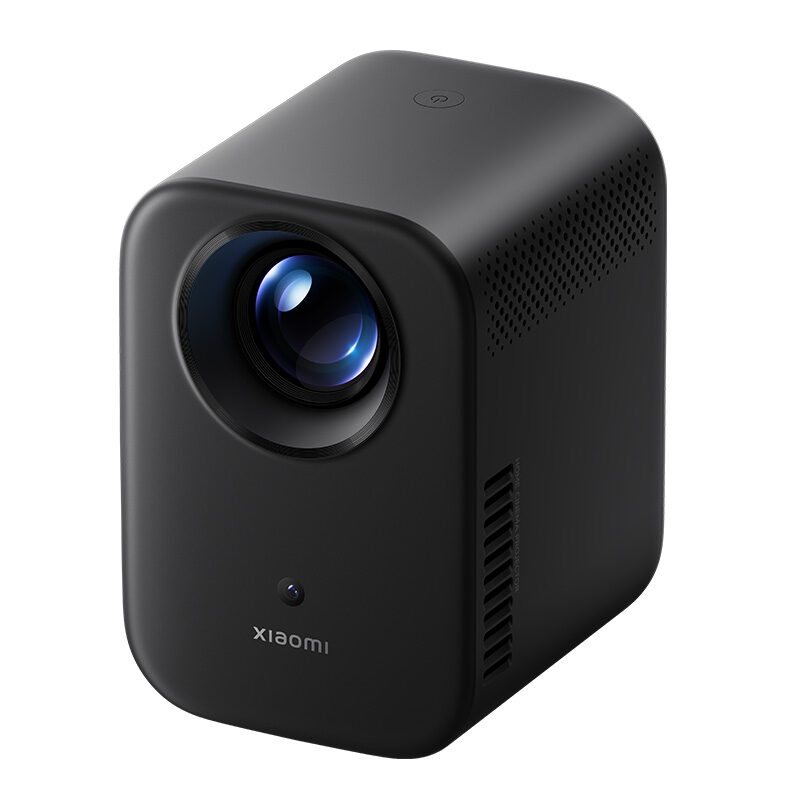

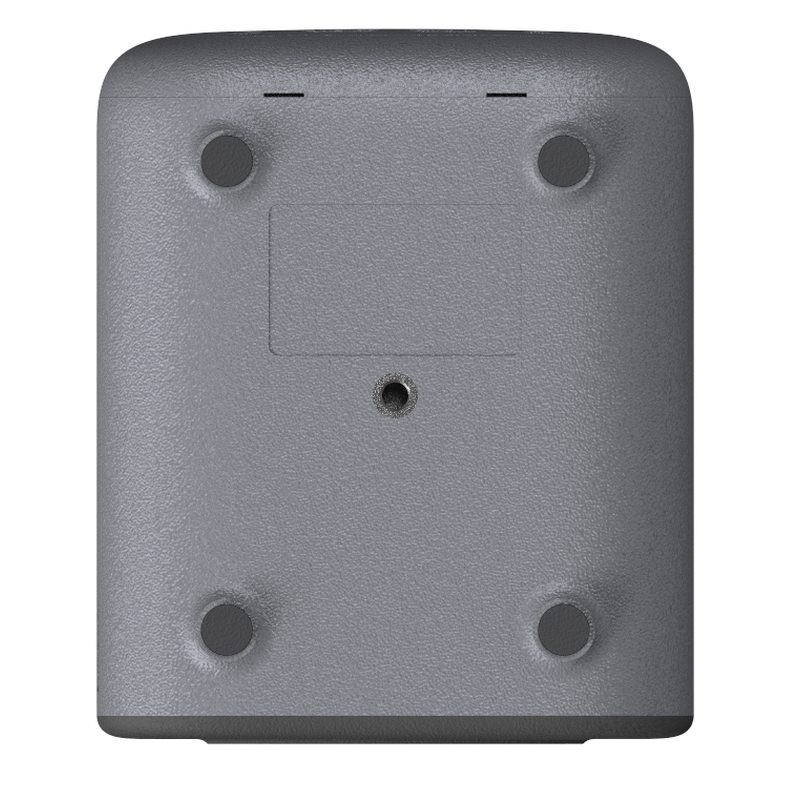

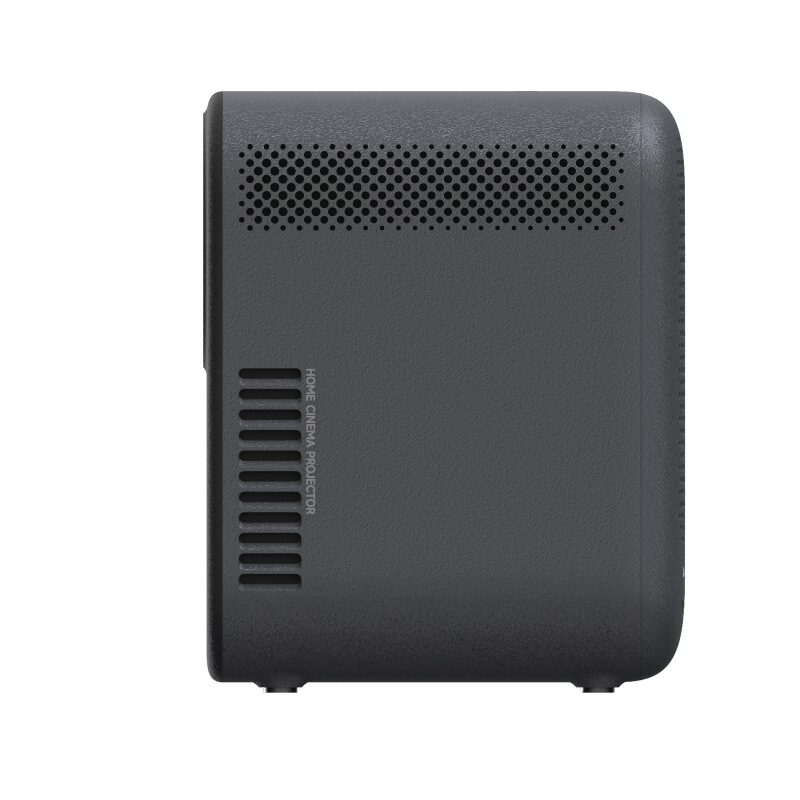

• Product Name: Xiaomi Smart Projector L1

• Model: XMTYY03FMG

• Dimensions: 118 × 142 × 176 mm

• Weight: 1.2 kg

Display

• Technology: LCD

• Brightness: 200 ISO Lumens

• Resolution: 1920 × 1080P (Full HD)

• Throw Ratio: 1.2:1

• Screen Size: 40"–120" (Recommended: 60"–100")

• Focus: Auto Focus

• Keystone Correction: Auto

• Obstacle Avoidance: Supported

• Screen Alignment: Supported

• Projection Methods: Front, Side, Ceiling (up to 15°)

Hardware

• Processor: MT9630 high-performance chip

• Memory: 2GB DDR3

• Storage: 16GB eMMC

System & Connectivity

• Operating System: Android TV™ OS

• Screen Casting: Google Cast

• Bluetooth: 5.0

• Wi-Fi: IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz)

Audio

• Audio Effects: Dolby Audio™

• Speakers: 3W × 2 full-range stereo

Power

• Rated Power: ≤ 72W

• Standby Power: ≤ 0.5W

• Auto Power-Off: Supported

• Input: 19.0V ⎓ 3.79A

• Noise Level: ≤ 30 dB(A) (in theater mode at 25°C ambient temperature)

• Storage Temp/Humidity: -20°C to 55°C / ≤ 90% RH

• Operating Temp/Humidity: 0°C to 40°C / 20%–80% RH

Package Contents

• Projector × 1

• Bluetooth Remote × 1

• Power Adapter × 1

• Power Cable × 1

• User Manual

• Warranty Card

• Desiccant Pack
